OpenWebUI

Portfolio Snapshot

This project focuses on developer experience and cloud repeatability for Open WebUI. The local baseline uses a Dev Container configured for Docker-in-Docker so the app can be built and run with Docker Compose in a consistent environment. The cloud baseline uses Terraform to provision Azure Container Apps infrastructure (logging + environment + storage) and deploy a pinned Open WebUI container image with external ingress and platform-managed secrets. The result is a clean foundation for future iterations such as Entra ID authentication, stronger persistence (managed database), and additional platform tooling.

What it proves

• Ability to design a repeatable “local-to-cloud” workflow with minimal setup friction (Dev Container + Compose).
• Practical Infrastructure-as-Code skills: parameterized Terraform, AzureRM backend remote state, and reproducible deployments.
• Production-minded platform configuration: centralized logging (Log Analytics), secret injection via Container App secrets, and explicit ingress configuration.
• Good engineering judgment around persistence: demonstrates Azure Files mounts while avoiding known SQLite-on-SMB file locking reliability issues in the baseline.

Key components

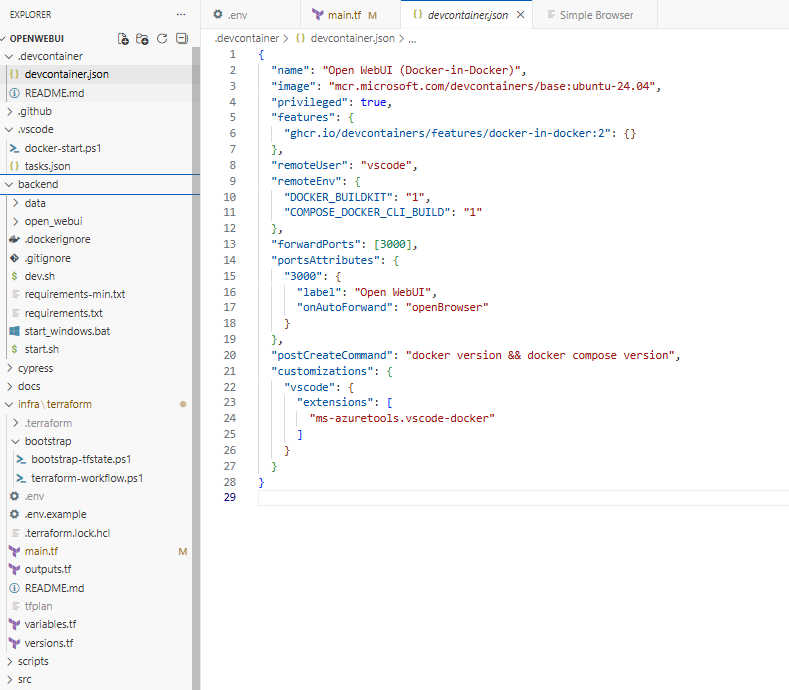

• Dev Container (Docker-in-Docker) for consistent development
  • Runs Docker + Docker Compose inside the container; avoids host machine drift.
  • Port forwarding set up for the UI (3000) with an “open browser” experience.

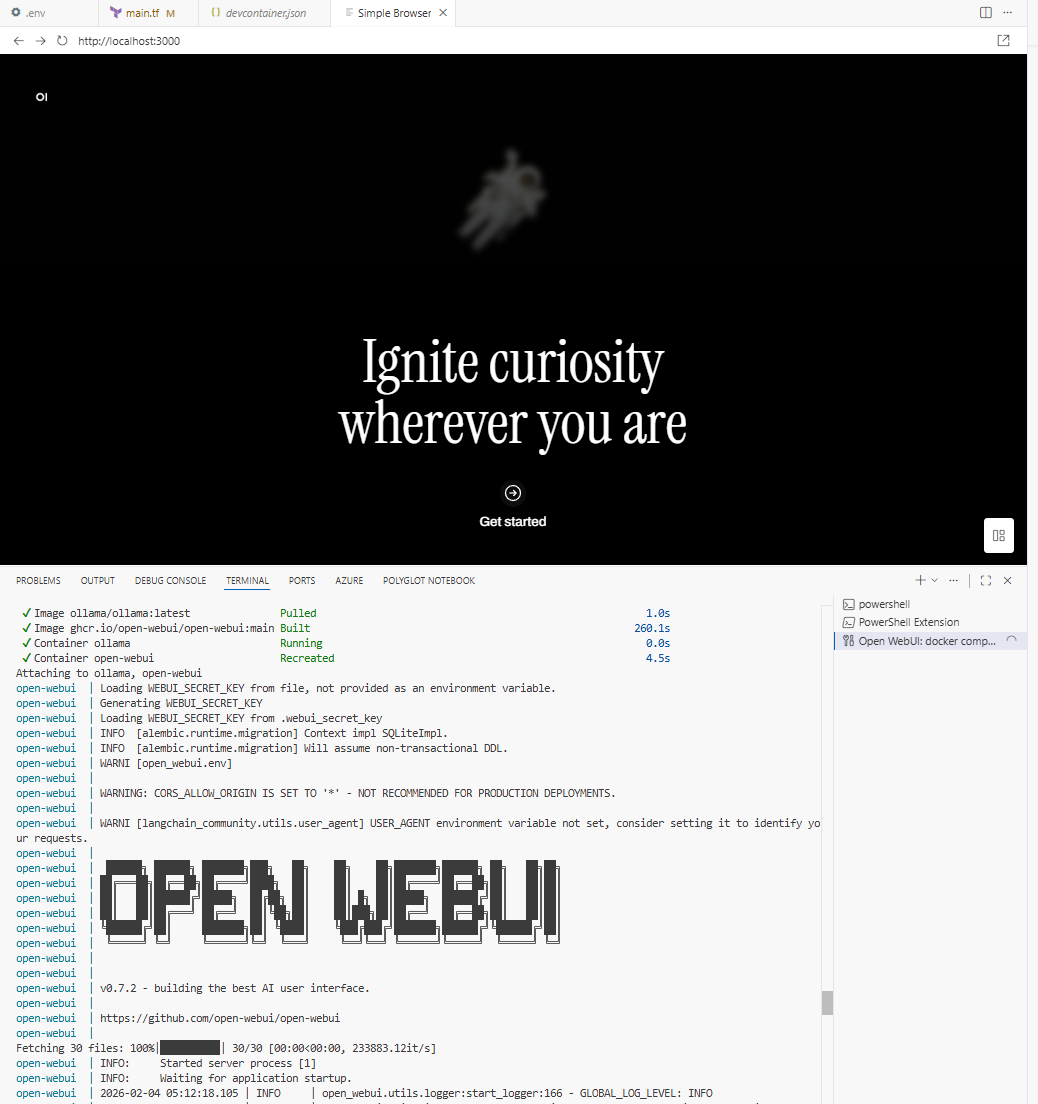

• Local Docker Compose baseline (validation path)
  • Open WebUI service plus an Ollama service for local integration and smoke testing.
  • Named volume mount to persist local Open WebUI artifacts at /app/backend/data.
• Terraform Azure Container Apps deployment
  • Resource group + Log Analytics workspace.
  • Container Apps environment wired to Log Analytics.
  • Open WebUI Container App with external ingress (target port 8080) and single-revision mode.
  • Pinned Open WebUI image tag to keep deployments deterministic.
• Storage + secrets
  • Azure Storage Account + Azure Files share provisioned and mounted into the container at /app/backend/data.
  • WEBUI_SECRET_KEY stored as a Container App secret and injected as an environment variable.
  • Environment-driven configuration via a gitignored .env file using TF_VAR_*.
• Operator automation
  • PowerShell workflow script to standardize: bootstrap remote state → init → validate → plan → apply → destroy.
  • VS Code tasks for end-to-end deploy flows and convenience operations.

Operational notes

• Remote Terraform state is intentionally configured at init-time (AzureRM backend values are supplied via environment), keeping state configuration out of Terraform source.
• Azure Files is used to persist artifacts/uploads/cache; SQLite is intentionally placed on local ephemeral storage to avoid SMB locking issues in the baseline.
• The infrastructure footprint is intentionally minimal (single replica, straightforward ingress) to optimize for clarity, repeatability, and future extension (Entra ID, managed DB, hardening).

Verification

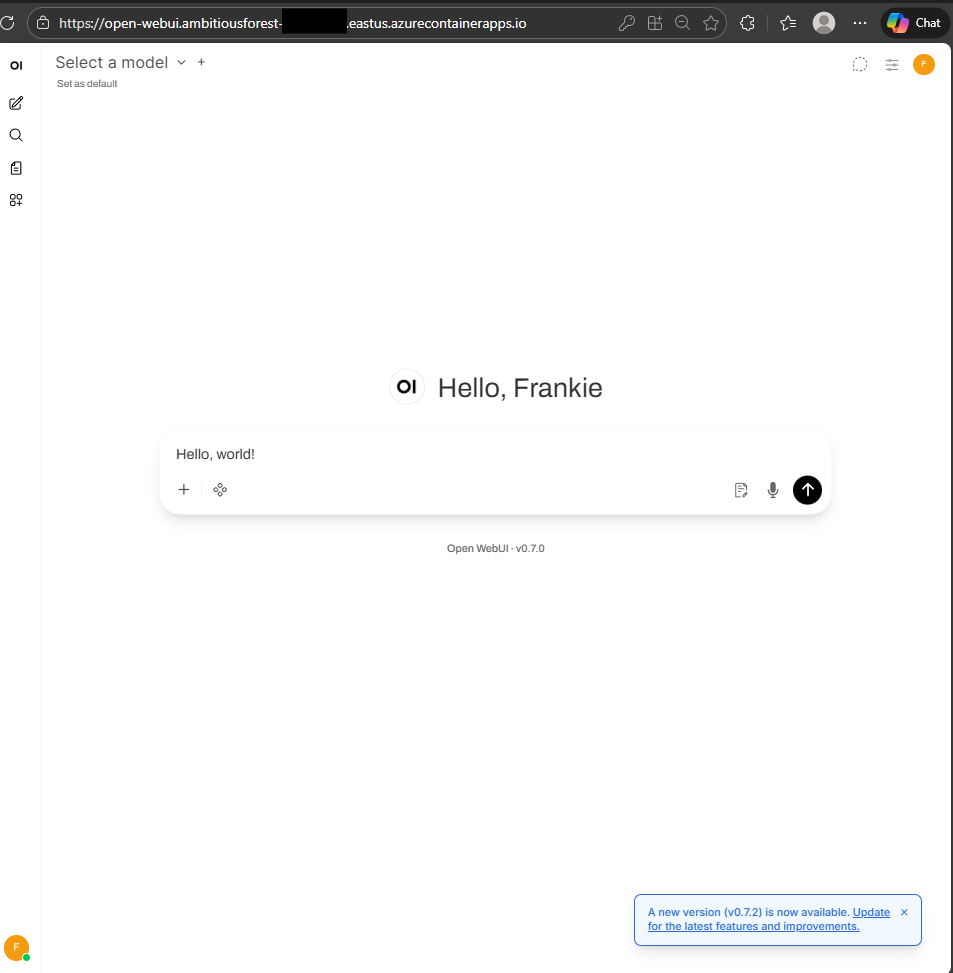

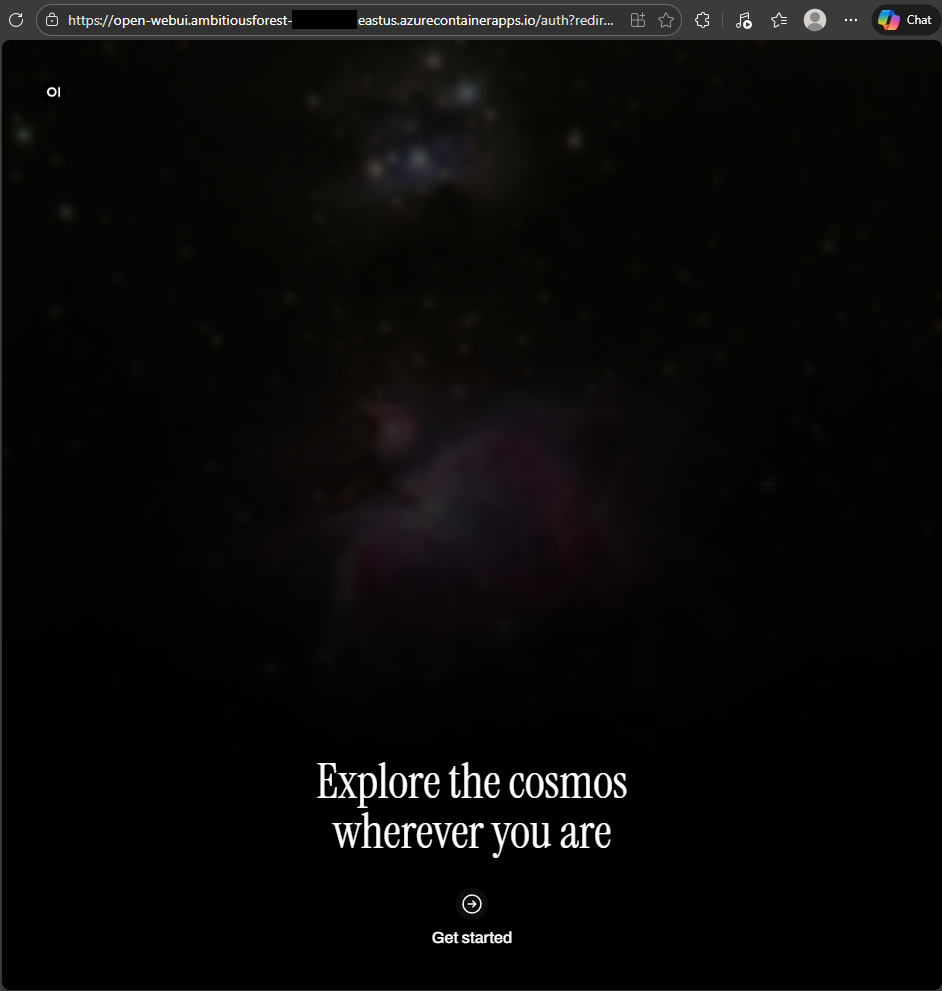

Visual evidence of project
